| Oct 18, 2023 |
|
(Nanowerk News) Particle accelerators are crucial tools in a wide variety of areas in industry, research and the medical sector. The space these machines require ranges from a few square meters to large research centers. Using lasers to accelerate electrons within a photonic nanostructure constitutes a microscopic alternative with the potential of generating significantly lower costs and making devices considerably less bulky.
|
|
Until now, no substantial energy gains were demonstrated. In other words, it has not been shown that electrons really have increased in speed significantly. A team of laser physicists at Friedrich-Alexander-Universität Erlangen-Nürnberg (FAU) has now succeeded in demonstrating the first nanophotonic electron accelerator – at the same time as colleagues from Stanford University.
|
Key Takeaways
|
|
Researchers have successfully developed a nanophotonic electron accelerator, essentially a “particle accelerator on a chip.”
The technology utilizes lasers to accelerate electrons within a photonic nanostructure, offering a more compact and potentially cheaper alternative to conventional particle accelerators.
The team used the alternating phase focusing (APF) method to guide electrons and achieved a 43% gain in energy over half a millimeter.
This development could pave the way for highly portable accelerators, with applications in medical imaging and radiotherapy.
To make the technology practical for medical use, the energy gain must be increased by approximately 100 times, according to the researchers.
|
 |

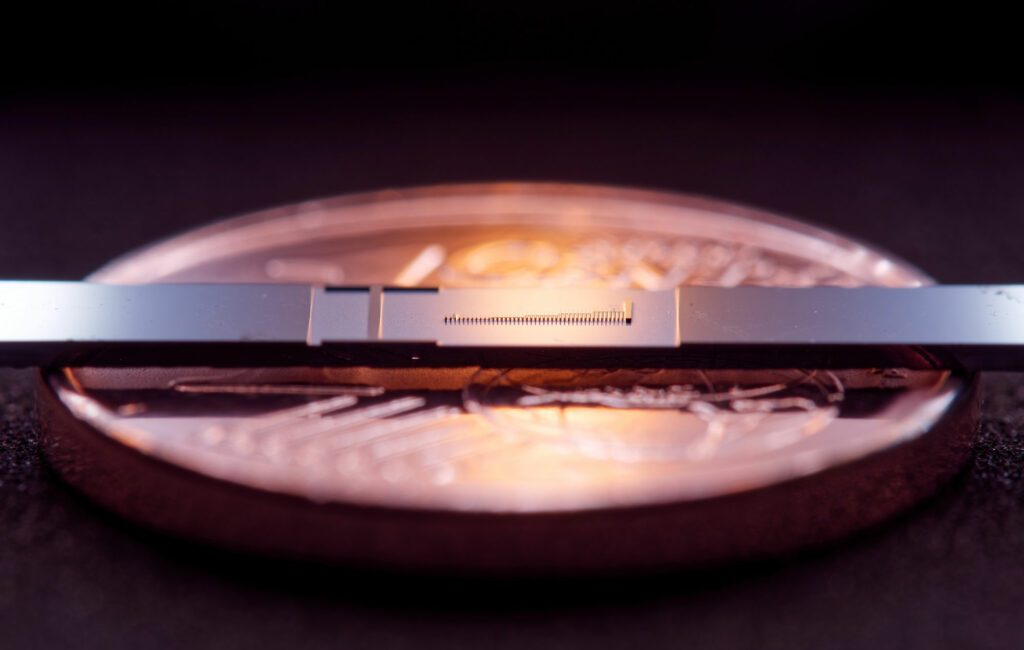

| For the first time, FAU researchers have succeeded in measurably accelerating electrons in structures that are only a few nanometers in size. In the picture you can see the microchip with the structures and, in comparison, a 1 cent coin. (Image: FAU, Julian Litzel)
|
The Research
The researchers from FAU have now published their findings in the journal Nature (“Coherent nanophotonic electron accelerator”).
|
|
When people hear “particle accelerator”, most will probably think of the Large Hadron Collider in Geneva, the approximately 27 kilometer long ring-shaped tunnel which researchers from around the globe used to conduct research into unknown elementary particles. Such huge particle accelerators are the exception, however. We are more likely to encounter them in other places in our day to day lives, for example in medical imaging procedures or during radiation to treat tumors. Even then, however, the devices are several meters in size and still rather bulky, with room for improvement in terms of performance.
|
|
In a bid to improve and decrease the size of existing devices, physicists around the globe are working on dielectric laser acceleration, also known as nanophotonic accelerators. The structures they use are merely 0.5 millimeters in length, and the channel the electrons are accelerated through is only roughly 225 nanometers in width, making these accelerators as small as a computer chip.
|
|
Particles are accelerated by ultrashort laser pulses illuminating the nano-structures.
|
|
“The dream application would be to place a particle accelerator on an endoscope in order to be able to administer radiotherapy directly at the affected area within the body,” explains Dr. Tomáš Chlouba, one of the four lead authors of the recently published paper.
|
|
This dream may still be far beyond the grasp of the FAU team from the Chair of Laser Physics led by Prof. Dr. Peter Hommelhoff and consisting of Dr. Tomáš Chlouba, Dr. Roy Shiloh, Stefanie Kraus, Leon Brückner and Julian Litzel, but they have now succeeded in taking a decisive step in the right direction by demonstrating the nanophotonic electron accelerator.
|
|
“For the first time, we really can speak about a particle accelerator on a chip,” enthuses Dr. Roy Shiloh.
|
Guiding electrons + acceleration = particle accelerator
|
|
Just over two years ago the team made their first major breakthrough: they succeeded in using the alternating phase focusing (APF) method from the early days of acceleration theory to control the flow of electrons in a vacuum channel over long distances (“Physicists control the flow of electron pulses through a nanostructure channel”). This was the first major step on the way towards building a particle accelerator. Now, all that was needed to gain major amounts of energy was acceleration.
|
|
“Using this technique, we have now succeeded not only in guiding electrons but also in accelerating them in these nano-fabricated structures over a length of half a millimeter,” explains Stefanie Kraus.
|
|
Whilst this might not sound like much of an achievement to many, it is a huge success for the field of accelerator physics. “We gained energy of 12 kiloelectron volts. That is a 43 percent gain in energy,” explains Leon Brückner.
|
|
In order to accelerate the particles over such large distances (when seen from the nano scale), the FAU physicists combined the APF method with specially developed pillar-shaped geometrical structures.
|
|
This demonstration is just the beginning, however. Now the aim is to increase the gain in energy and electron current to such an extent that the particle accelerator on a chip is sufficient for applications in medicine. For this to be the case, the gain in energy would have to be increased by a factor of approximately 100.
|
|
“In order to achieve higher electron currents at higher energies at the output of the structure, we will have to expand the structures or place several channels next to each other,” Tomáš Chlouba explains the next steps of the FAU laser physicists.
|
